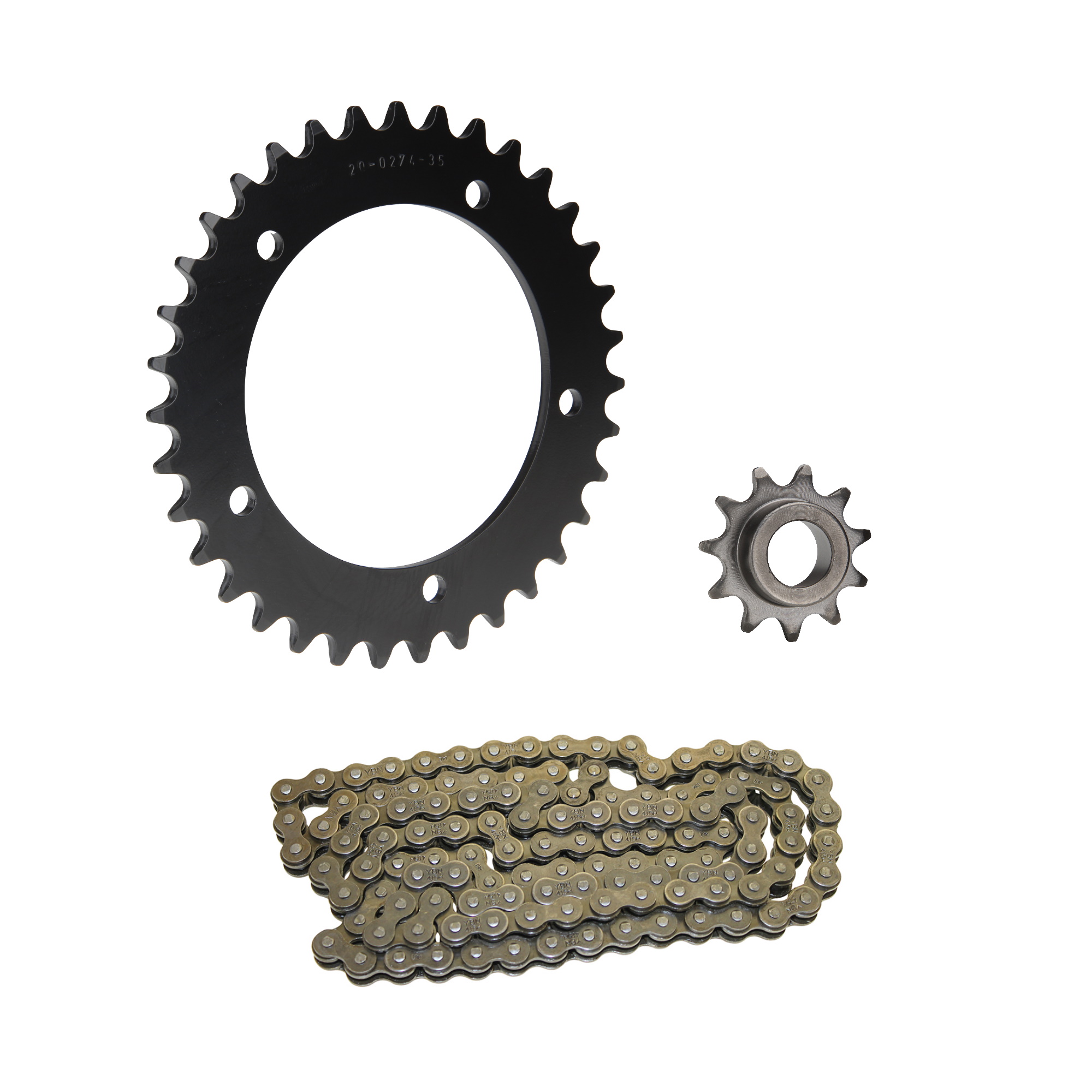

Chain set 3-piece black 11/35 teeth for Hercules KX 5 (up to engine no. 10697365)
Prices plus VAT plus shipping costs
IN STOCK - Delivery time 1-3 working days
Only a few left!
Further variants / accessories
- Item no: 1280531135104B
- EAN: 4060861200328
- Manufacturer: Citomerx
- Manufacturer no.: 1280531135104B
Hercules KX-5 49 without fairing 40 km/h / 5-speed foot gearshift 07/01/1984 654 1984-1985 Sachs 50/5 AKF (up to engine no. 1069 7365)
Hercules KX-5 49 without fairing 50 km/h / 5-speed foot gearshift 07/01/1984 654 1986-1992 Sachs 50/5 AKF (up to engine no. 1069 7365)
Hercules KX-5 49 without fairing 50 km/h / 5-speed foot gearshift 07/01/1984 654 1993-1995 Sachs 50/5 AKF (up to engine no. 1069 7365)
Hercules KX-5 49 fairing 40 km/h / 5-speed foot gearshift 07/01/1984 654 1984-1985 Sachs 50/5 AKF (up to engine no. 1069 7365)
Hercules KX-5 49 fairing 50 km/h / 5-speed foot gearshift 07/01/1984 654 1986-1992 Sachs 50/5 AKF (up to engine no. 1069 7365)
Hercules KX-5 49 fairing 50 km/h / 5-speed foot gearshift 07/01/1984 654 1993-1995 Sachs 50/5 AKF (up to engine no . 1069 7365)
| Model compatibility: | Hercules KX 5 (up to engine no. 10697365) |
| Pinion Shaft mount shape: | round conical |
| Sprocket total width: | 4.60 mm |
| Sprocket thickness Chainring: | 3/16" (4.60 mm) |
| Sprocket thickness Chainring: | 3/16" (4.60 mm) |

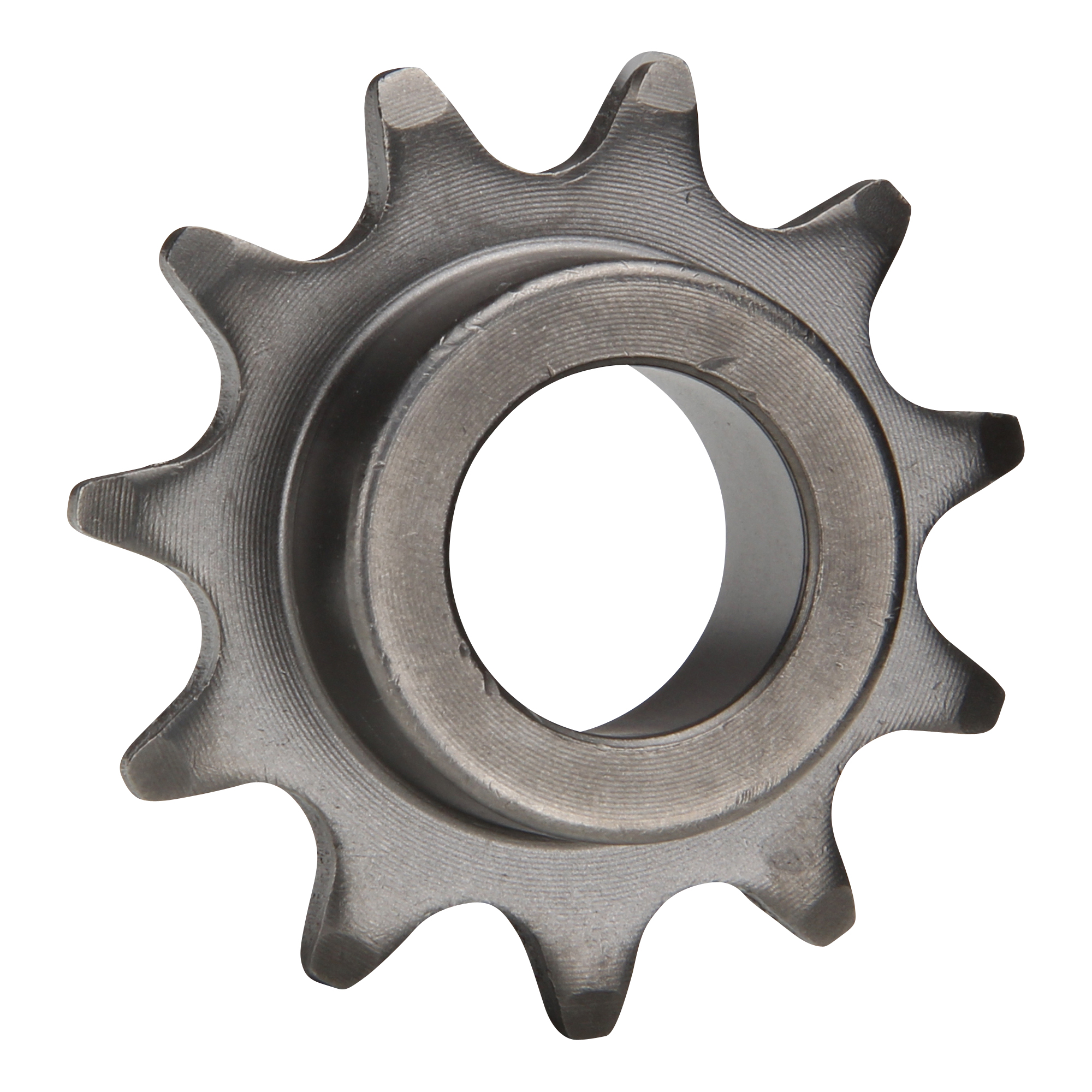

| Pinion Number of teeth: | 11 |
| Chain length: | 104 links |
| Sprocket Number of mounting holes: | 5 |

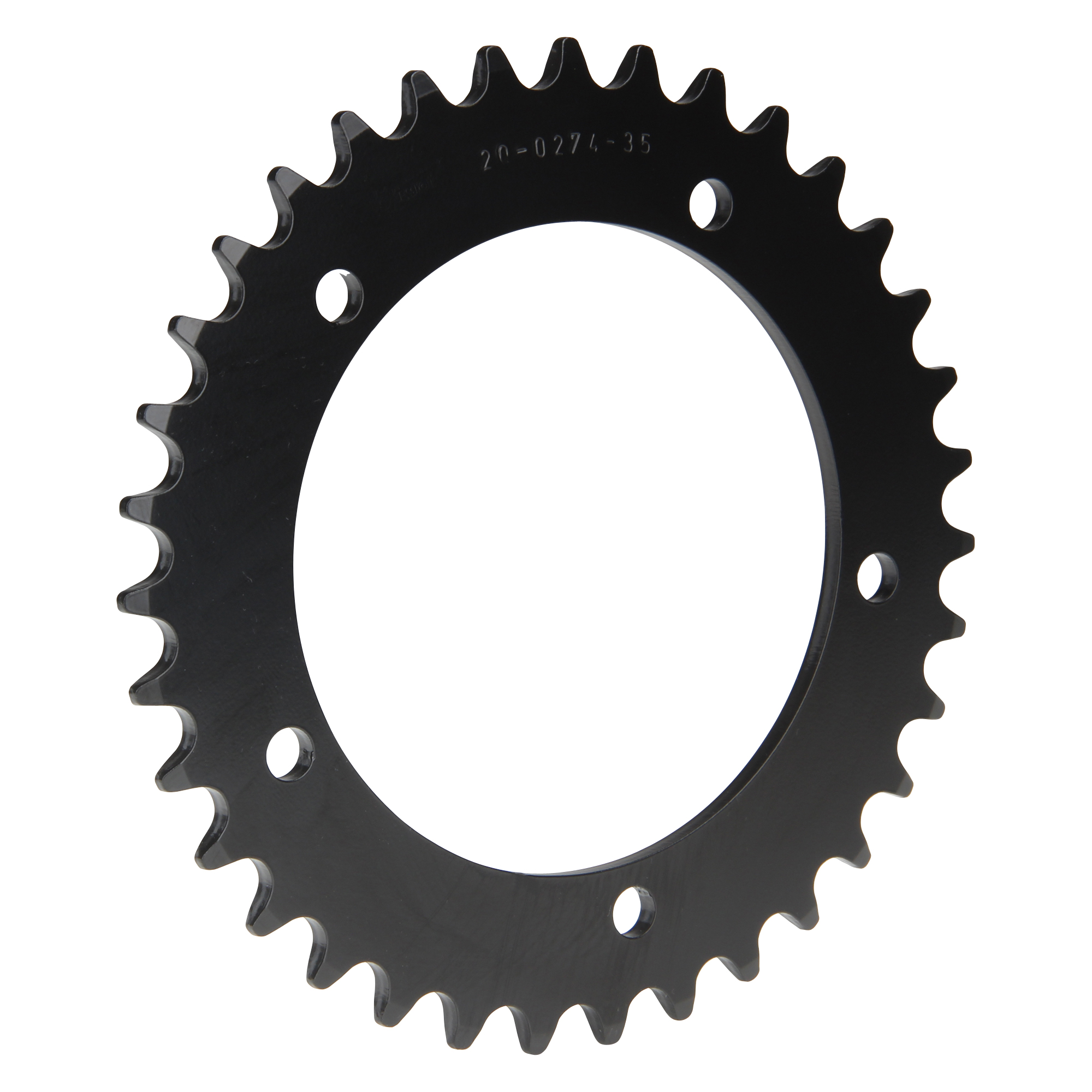

| Sprocket number of teeth: | 35 |
| Pinion total width: | 17.00 mm |
| Pinion shaft mounting Dimensions: | 20.0 > 18.3 mm |
| Chains Note: | Chain may need to be shortened! |
| OE/OEM reference number(s): | 0236 108 003 (pinion), 0890 231 002 (sprocket), 0236108003 (pinion), 0890231002 (sprocket) |
| Pinion type: | 0218 |
| Sprocket inner diameter: | 95.00 mm |
| Sprocket bolt circle: | 110.00 mm |
| Sprocket type: | 0274 |
| GTIN: | 4060861200328 |
| Sprocket diameter Mounting holes: | 7.50 mm |
| Sprocket version: | flat |
| Chain type: | Reinforced |
| Pinion tuning note 1: | More teeth -> more top speed / less acceleration |
| Vintage part: | Yes |
| Tuning & Styling Part: | Yes |
| Universal compatibility: | No |
| Compatible year: | not specified |
| Note: | Note the original translation! |
| Division: | 415 (1/2 x 3/16 x 7.75) |
| ATTENTION!: | Change in the number of teeth -> Cancellation of operating license! |
| Pinion tuning hint 2: | Fewer teeth -> better acceleration / less top speed |
| Sprocket tuning note 1: | More teeth -> better acceleration / less top speed |
| Sprocket tuning note 2: | Fewer teeth -> more top speed / less acceleration |
| Chain link length: | 1/2" (12.70 mm) |
| Color: | Black |
| Scope of delivery: | 1x chain set 11 / 35 / 104 |
| Manufacturer number: | 1280531135104B |
| Country and region of manufacture: | China |
| Brand compatibility: | Hercules |
| Installation position: | Front, Rear |
| Product type: | Chain set |
| Type of motorcycle: | Moped & Mokick |
| Description of the package content: | Sprocket + sprocket + chain |
| Manufacturer warranty: | 2 years |
| Material: | Steel |
