Chain set 3-piece black 12/50 teeth for Hercules Prima 2 3 4 5 5 M 4 5 HR2 P 1 3 MX1 Optima
Prices plus VAT plus shipping costs
IN STOCK - Delivery time 1-3 working days
Further variants / accessories
- Item no: 1271881250110B
- EAN: 4060861173677
- Manufacturer: Citomerx
- Manufacturer no.: 1271881250110B
Hercules HR 2 Hobby Rider 2
Hercules M 4 Type 511
Hercules M 4 S Type 511
Hercules M 5 Type 634
Hercules M 5 S Type 634
Hercules MX 1
Hercules Prima S (safety moped)
Hercules Prima
Hercules Prima 2 N
Hercules Prima 2 S
Hercules Prima 2
Hercules Prima 3 S
Hercules Prima 3
Hercules Prima 4 LN (Low Noise)
Hercules Prima 4 N
Hercules Prima 4 S
Hercules Prima 4 SL (with flashing light system)
Hercules Prima 4 SL (without flashing light system)
Hercules Prima 4
Hercules Prima 4 (with white aluminum wheels)
Hercules Prima 5 LN (Low Noise)
Hercules Prima 5 N
Hercules Prima 5 S
Hercules Prima 5 S (with brake light)
Hercules Prima 5 S (with white aluminum wheels)
Hercules Prima 5 S (without brake light) / BASF
Hercules Prima 5 S (special model)
Hercules Prima 5 SE (12V system)
Hercules Prima 5 SL
Hercules Prima 5 SX
Hercules Prima 5
Hercules Prima 5 (with white aluminum wheels)
Hercules Prima 6 (with flashing lights)
Hercules Optima 3
Hercules P 1 Type 505 P
Hercules P 1 CH Type 505 P CH (Switzerland)
Hercules P 1 I Type 505 PI (Italy)
Hercules P 1 X Type 505 PX (Export)
Hercules P 3 Type 513 (50 km/h)
| Tuning & Styling Part: | Yes |
| Pinion shaft mounting Dimensions: | 12.0 x 15.5 mm |
| Sprocket total width: | 4.60 mm |
| Sprocket inner diameter: | 42.50 mm |
| Sprocket bolt circle: | 66.00 mm |
| Sprocket thickness Chainring: | 3/16" (4.60 mm) |
| Sprocket type: | 0268 |
| Pinion total width: | 6.50 mm |
| Sprocket thickness Chainring: | 3/16" (4.60 mm) |
| Pinion Shaft mount shape: | oval |
| Pinion type: | 0235 |
| Sprocket Number of mounting holes: | 4 |
| Chain length: | 110 links |
| OE/OEM reference number(s): | 0236 101 000 / 0236 101 100 / 0236 100 000 (pinion), 0890 236 001 / 0890 223 000 (sprocket), 0236101000 / 0236101100 / 0236100000 (pinion), 0890236001 / 0890223000 (sprocket) |

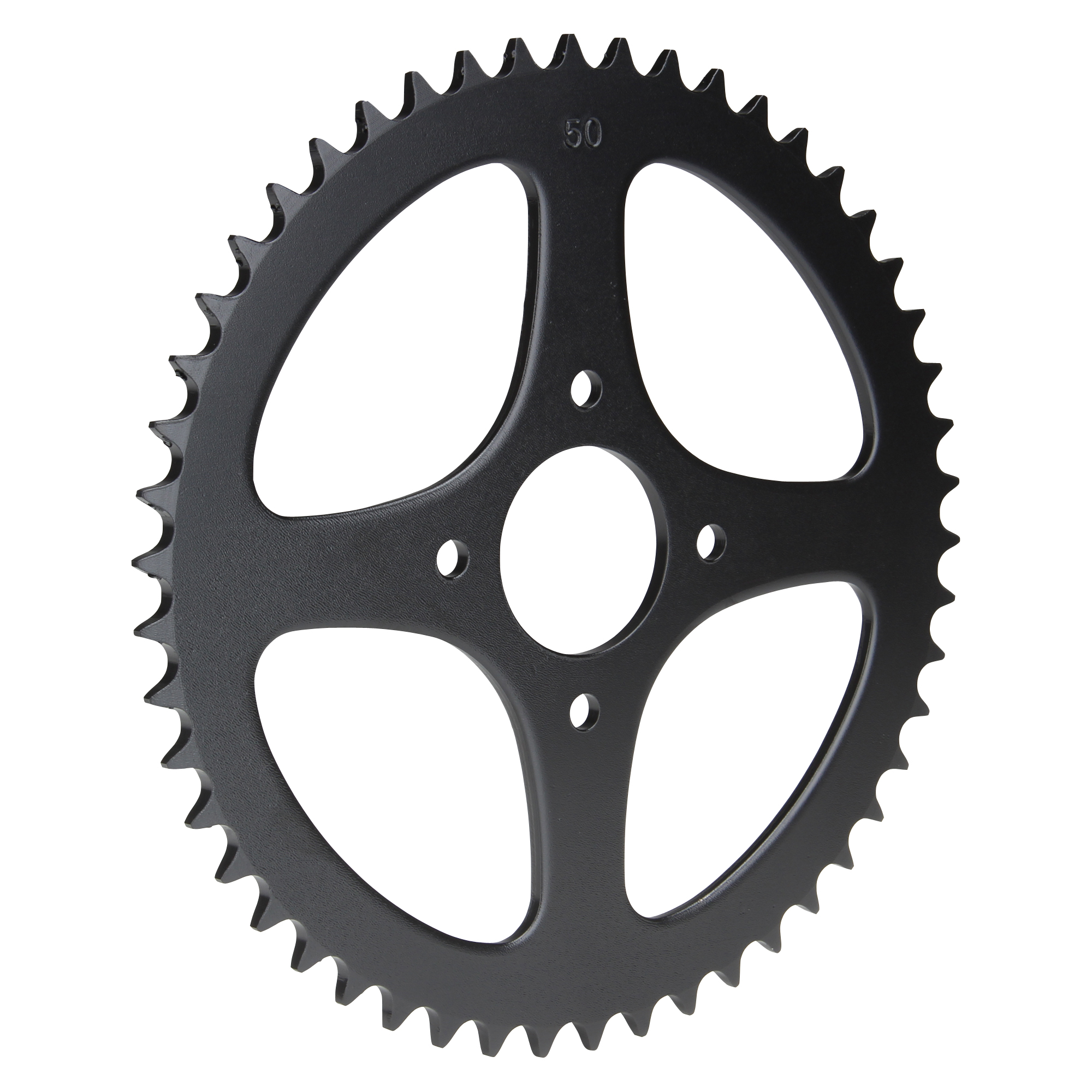

| Sprocket number of teeth: | 50 |

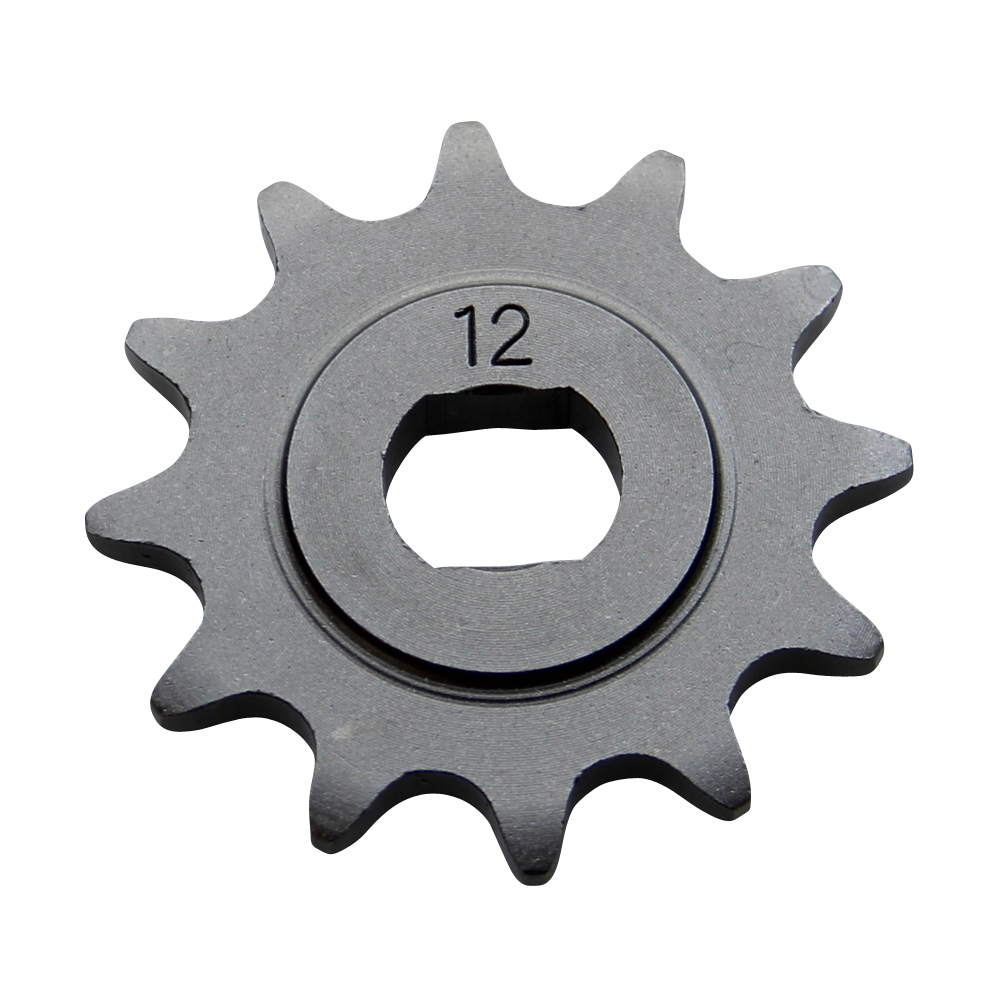

| Pinion Number of teeth: | 12 |
| GTIN: | 4060861173677 |
| Vintage part: | Yes |
| Sprocket diameter Mounting holes: | 7.50 mm |
| Sprocket version: | flat |
| Chains Note: | Chain may need to be shortened! |
| Pinion tuning hint 2: | Fewer teeth -> better acceleration / less top speed |
| Universal compatibility: | No |
| Compatible year: | not specified |
| ATTENTION!: | Change in the number of teeth -> Cancellation of operating license! |
| Note: | Note the original translation! |
| Division: | 415 (1/2 x 3/16 x 7.75) |
| Pinion tuning note 1: | More teeth -> more top speed / less acceleration |
| Model compatibility: | not specified |
| Sprocket tuning note 1: | More teeth -> better acceleration / less top speed |
| Sprocket tuning note 2: | Fewer teeth -> more top speed / less acceleration |
| Chain link length: | 1/2" (12.70 mm) |
| Chain type: | Reinforced |
| Color: | Black |

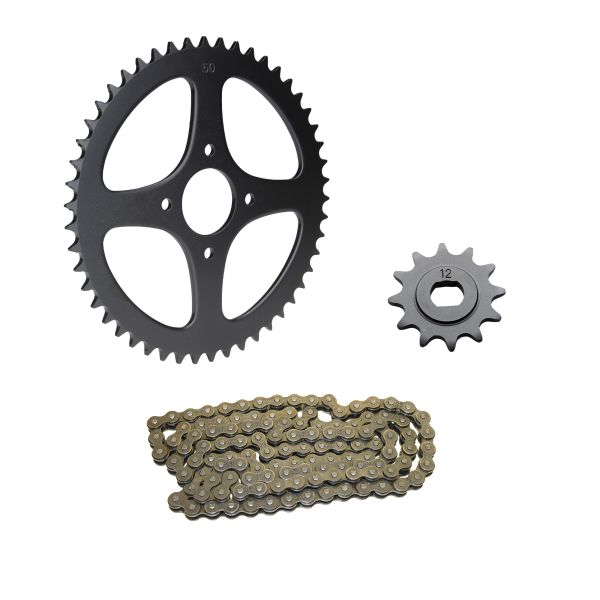

| Scope of delivery: | 1x chain set 12 / 50 / 110 |
| Manufacturer number: | 1271881250110B |
| Country and region of manufacture: | China |
| Brand compatibility: | Hercules |
| Installation position: | Front, Rear |
| Product type: | Chain set |
| Type of motorcycle: | Moped & Mokick |
| Description of the package content: | Sprocket + sprocket + chain |
| Manufacturer warranty: | 2 years |
| Material: | Steel |
