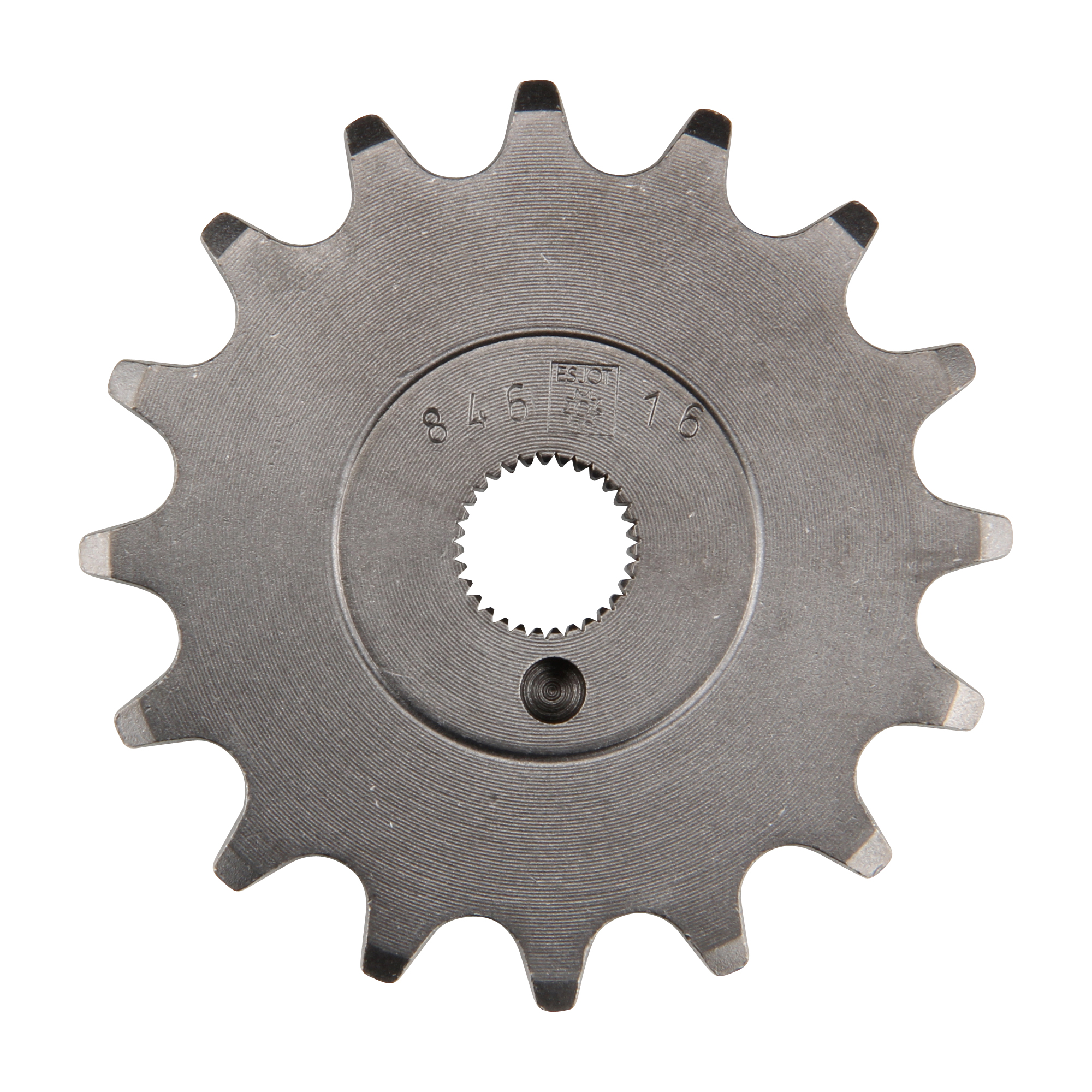

Pinion 16 teeth pitch 415 type 0846 for Zundapp ZD 20 25 40 50 type 446 / Hai 50 type 448 / ZX ZL ZS X 25 type 460
Prices plus VAT plus shipping costs
IN STOCK - Delivery time 1-3 working days
Last article - Buy now
Further variants / accessories
- Item no: 100152
- EAN: 4060861114168
- Manufacturer: Citomerx
- Manufacturer no.: 100152
- Height: 9 cm
- Width: 72 cm
Tuning für:
ZD 40 Typ 446-300 (ab FG-Nr. 9030749-9201498) (118mm Bremstrommel)
ZD 20 Typ 446-400 (ab FG-Nr. 9030749-9199883) (118mm Bremstrommel)
ZD 40 Typ 446-300 (ab FG-Nr. 9201499-9255042)
ZD 20 Typ 446-400 (ab FG-Nr. 9199883-9255042)
ZD 25 Typ 446-420 (ab FG-Nr. 9165722-9255042)
ZD 50 Typ 446-422 (ab FG-Nr. 9255043)
ZD 20 Typ 446-450
ZS 25 Typ 460-050 (bis Motor Nr. 9955240)
ZS 25 Typ 460-051 (bis Motor Nr. 9955240)
Hai 50 Typ 448-110
Hai 50 Typ 448-111
Hai 50 Typ 448-160
ZX 25 Typ 460-010 (bis Motor Nr. 9955240)
ZX 25 Typ 460-013 (bis Motor Nr. 9432205)
ZX 25 Typ 460-013 (Motor Nr. 9432206 - 9955240)
X 25 Typ 460-014 (bis Motor Nr. 9955240)
ZL 25 Typ 460-040 (bis Motor Nr. 9955240)
ZL 25 Typ 460-041 (bis Motor Nr. 9955240)
| GTIN: | 4060861114168 |
| ATTENTION!: | Change in the number of teeth -> Cancellation of operating license! |
| Shaft mounting Dimensions: | 12.0 / 13.0 mm |
| Shaft mounting form: | round toothed |
| Pinion tuning hint 2: | Fewer teeth -> better acceleration / less top speed |
| Pinion tuning note 1: | More teeth -> more top speed / less acceleration |
| Compatible chain link length: | 1/2" (12.70 mm) |
| Division: | 415 (1/2 x 3/16 x 7.75) |
| Chainring thickness: | 3/16" (4.60 mm) |
| Note: | Note the original translation! |
| Model compatibility: | not specified |
| Universal compatibility: | No |
| Compatible year: | not specified |
| Vintage part: | Yes |
| Color: | Grey |
| Total width: | 8.00 mm |
| Drill hole: | 5.00 mm |
| Scope of delivery: | 1x chain sprocket |
| Manufacturer number: | 100152 |
| Country and region of manufacture: | China |
| Brand compatibility: | Zündapp |
| Installation position: | Front |
| Product type: | Chain sprocket |
| Type of motorcycle: | Moped & Mokick |
| Manufacturer warranty: | 2 years |
| Diameter: | 65.00 mm |
| Material: | Steel |
| Type: | 0846 |
