Pinion 15 teeth pitch 415 type 0820 for Zundapp CS GTS KS RS 50 type 448 515 517 529 561

£8.50 *
Content: 1 piece

Prices plus VAT plus shipping costs

Order within 4 Std.  and  56 Min.  and your package will be shipped today!

IN STOCK - Delivery time 1-3 working days

Further variants / accessories

Ritzel 14 Zähne Teilung 415 Typ 0820 für Zündapp CS GTS KS RS 50 Typ 448...
Ritzel 15 Zähne Teilung 415 Typ 0820 für Zündapp CS GTS KS RS 50 Typ 448...
Ritzel 16 Zähne Teilung 415 Typ 0820 für Zündapp CS GTS KS RS 50 Typ 448...
Ritzel 17 Zähne Teilung 415 Typ 0820 für Zündapp CS GTS KS RS 50 Typ 448...
Ritzel 13 Zähne Teilung 415 Typ 0820 für Zündapp CS GTS KS RS 50 Typ 448...
Ritzel 12 Zähne Teilung 415 Typ 0820 für Zündapp CS GTS KS RS 50 Typ 448...
3 Jahre Verschleiß-Plus-Garantie für Artikel 276-05.157
Jetzt 3 Jahre zusätzliche Garantie sichern.   » Details
£0.36*
  • 276-05.157
  • 4251048859327
  • Citomerx
  • 714195
Looking for spare parts? Then as a driver of a Zündapp machine, you've come to the right place!... more
Product information about Pinion 15 teeth pitch 415 type 0820 for Zundapp CS GTS KS RS 50 type 448 515 517 529 561
Looking for spare parts? Then as a driver of a Zündapp machine, you've come to the right place!

DESCRIPTION:
The Zündapp factories were founded in 1917 by Fitz Neumeyer and were designed for the production of armaments. In 1921, however, Neumeyer discovered a market niche in the automotive and motorcycle industry. He built an inexpensive utility motorcycle for "everyone". The Zündapp Z 22 was sold very successfully until 1924 and the production volume increased steadily. The history of Zündapp goes back to 1984, when the company had to file for bankruptcy, thus sealing the end of the company's existence.

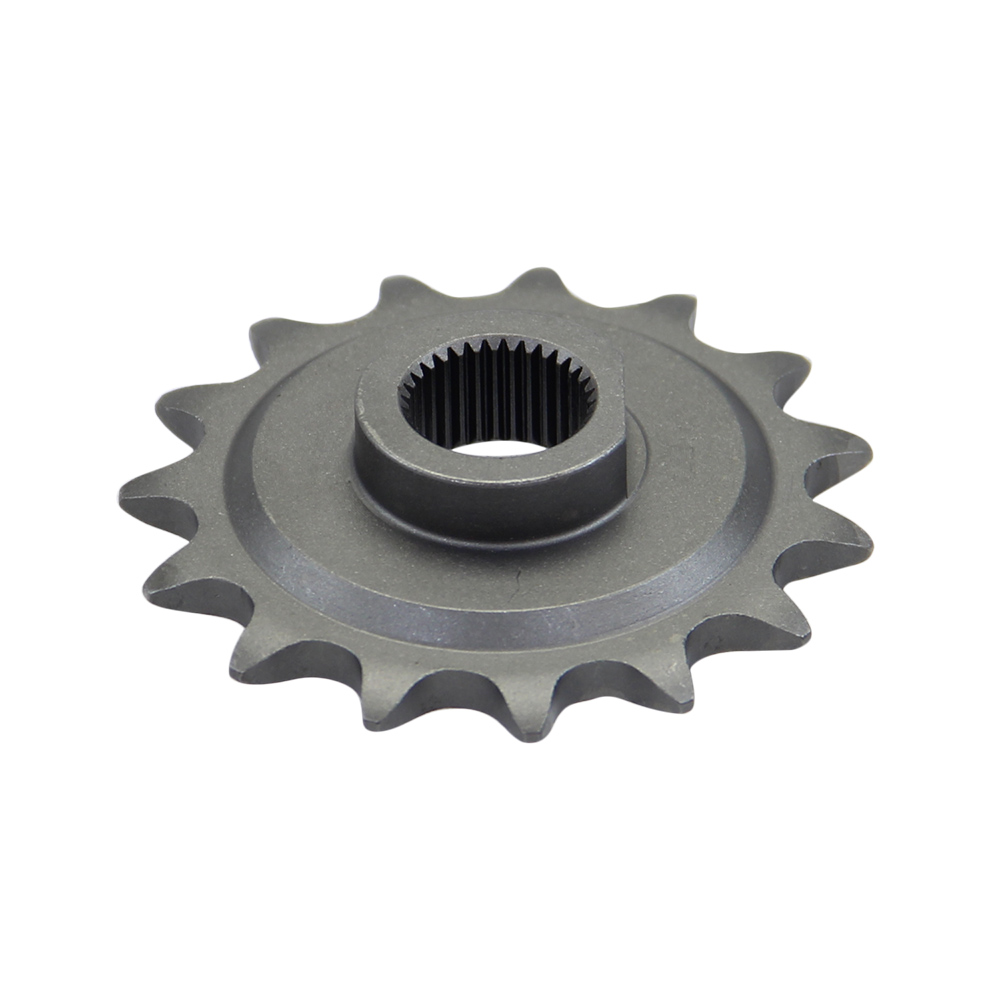

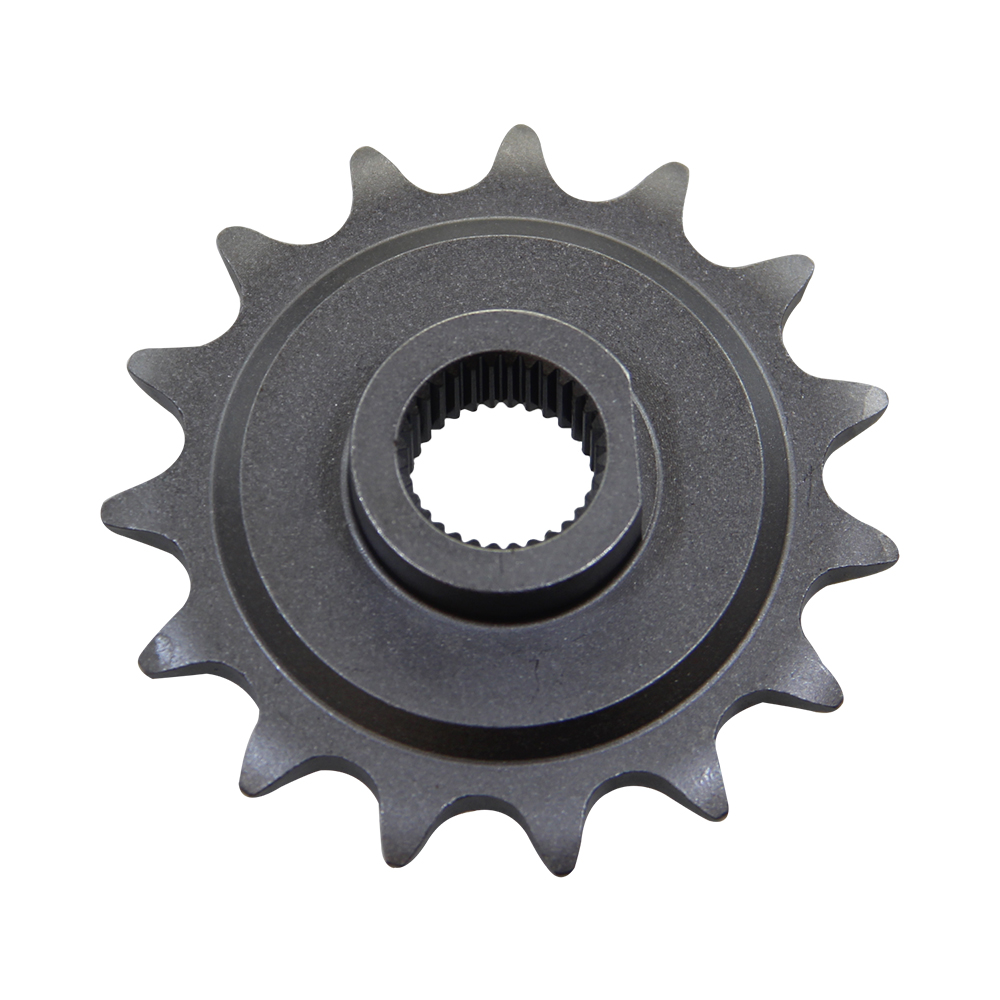

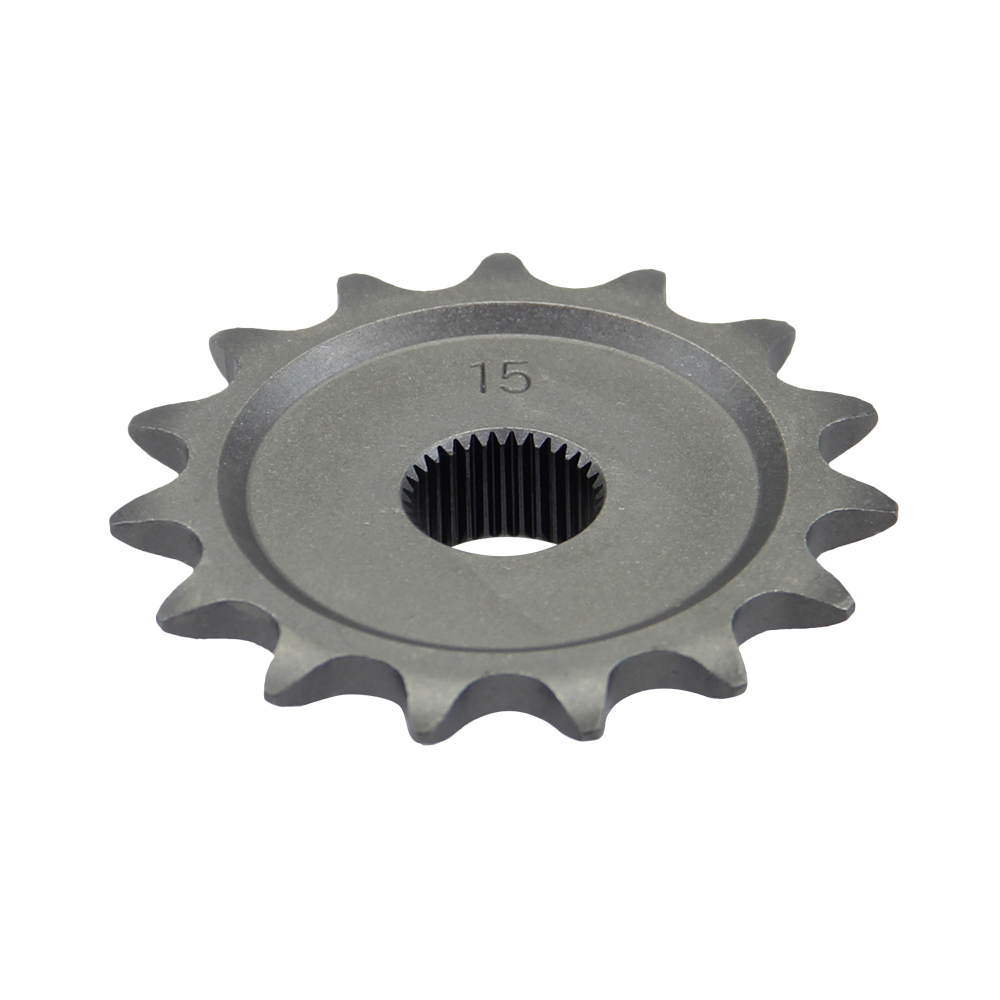

The sprocket transmits the revolutions of the engine to the rear wheel of your vehicle by means of the chain. It is the smaller of the two sprockets. It has 15 teeth and a 415 pitch. The inner cone has a large fine toothing. It is suitable for the Zündapp models KS 50, GTS 50 and CS 50. If you use a larger or smaller sprocket, the speed or suit can be changed. However, this leads to the expiry of the operating permit.

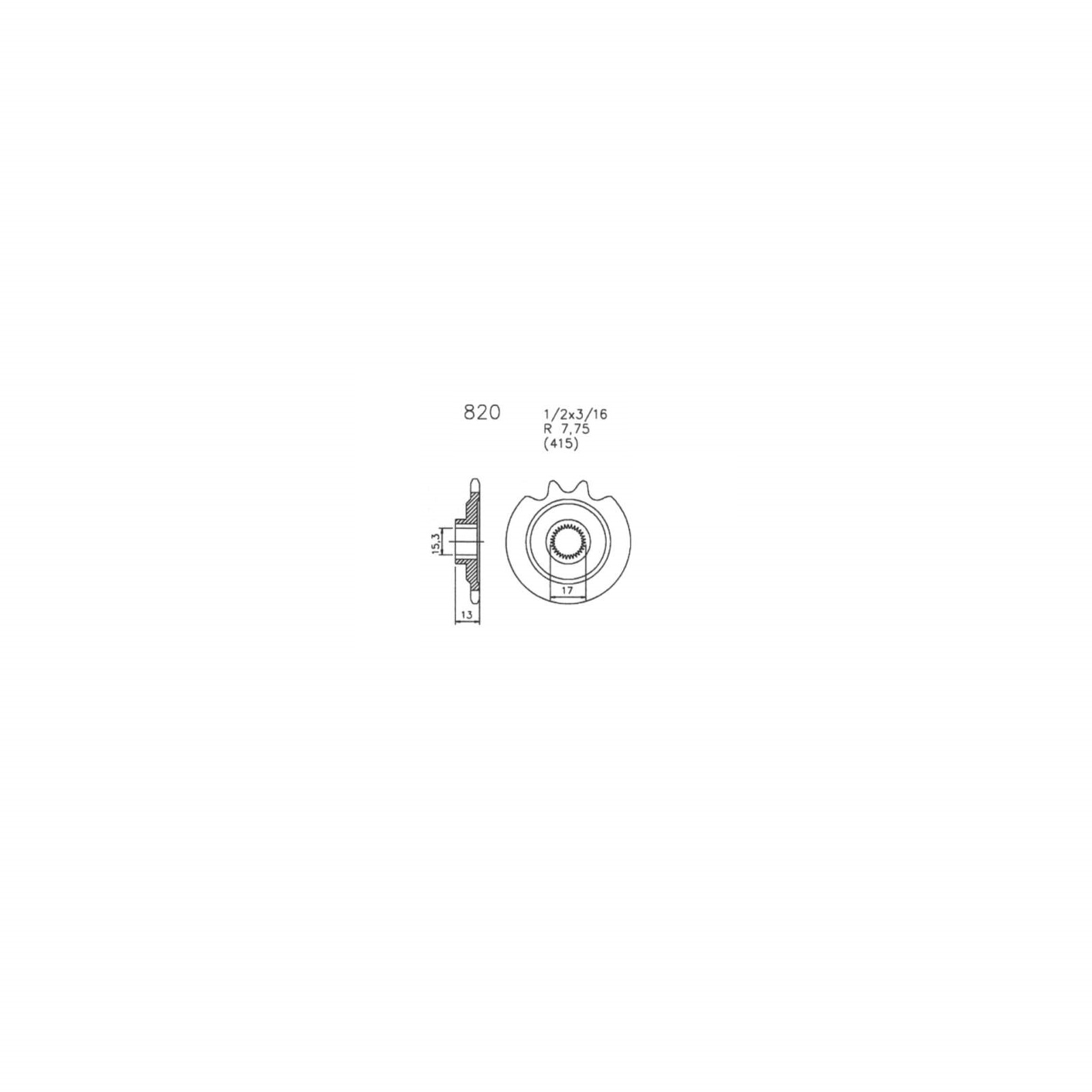

TECHNICAL DATA:
- Sprocket 15 teeth
- Pitch: 415
- Chainring thickness: 4.5 mm
- diameter serration: 16,8 mm
- length serration: 12,5 mm
- Recording flattened

SCOPE OF DELIVERY:
✔ 1x sprocket 15 teeth
Properties
Product type: Chain sprocket
Division: 415 (1/2 x 3/16 x 7.75)
Shaft mounting form: round toothed
Vintage part: Yes
Shaft mounting Dimensions: 15.3 / 17.0 mm
Universal compatibility: No
Chainring thickness: 3/16" (4.60 mm)
Compatible year: not specified
Model compatibility: not specified
Pinion tuning note 1: More teeth -> more top speed / less acceleration
OE/OEM reference number(s): 276-05.157
Pinion tuning hint 2: Fewer teeth -> better acceleration / less top speed
ATTENTION!: Change in the number of teeth -> Cancellation of operating license!
GTIN: 4251048859327
Note: Note the original translation!
Compatible chain link length: 1/2" (12.70 mm)
Color: Grey
Total width: 13.00 mm
Scope of delivery: 1x chain sprocket
Manufacturer number: 714195
Country and region of manufacture: China
Brand compatibility: Zündapp
Installation position: Front
Type of motorcycle: Moped & Mokick
Manufacturer warranty: 2 years
Diameter: 61.00 mm
Material: Steel
Type: 0820
