CMX E-Bike Chiptuning Speedbox Evo2 50km/h for Pendix middle motor pedelec
£41.83 *
£69.76 *
40.04% saved
Content:
1 piece
Prices plus VAT plus shipping costs
IN STOCK - Delivery time 1-3 working days
- Item no: 164196Pendix
- EAN: 4251048881410
- Manufacturer: CMX
- Manufacturer no.: 164196Pendix

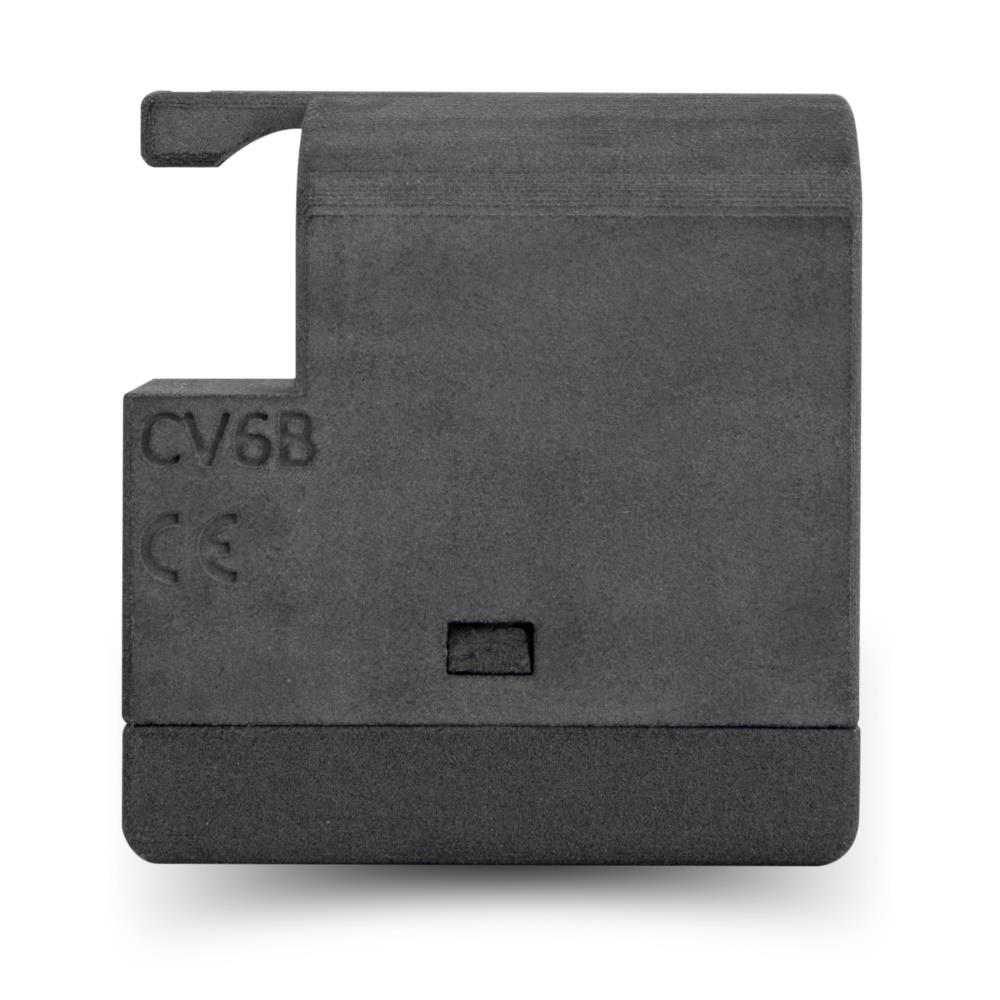

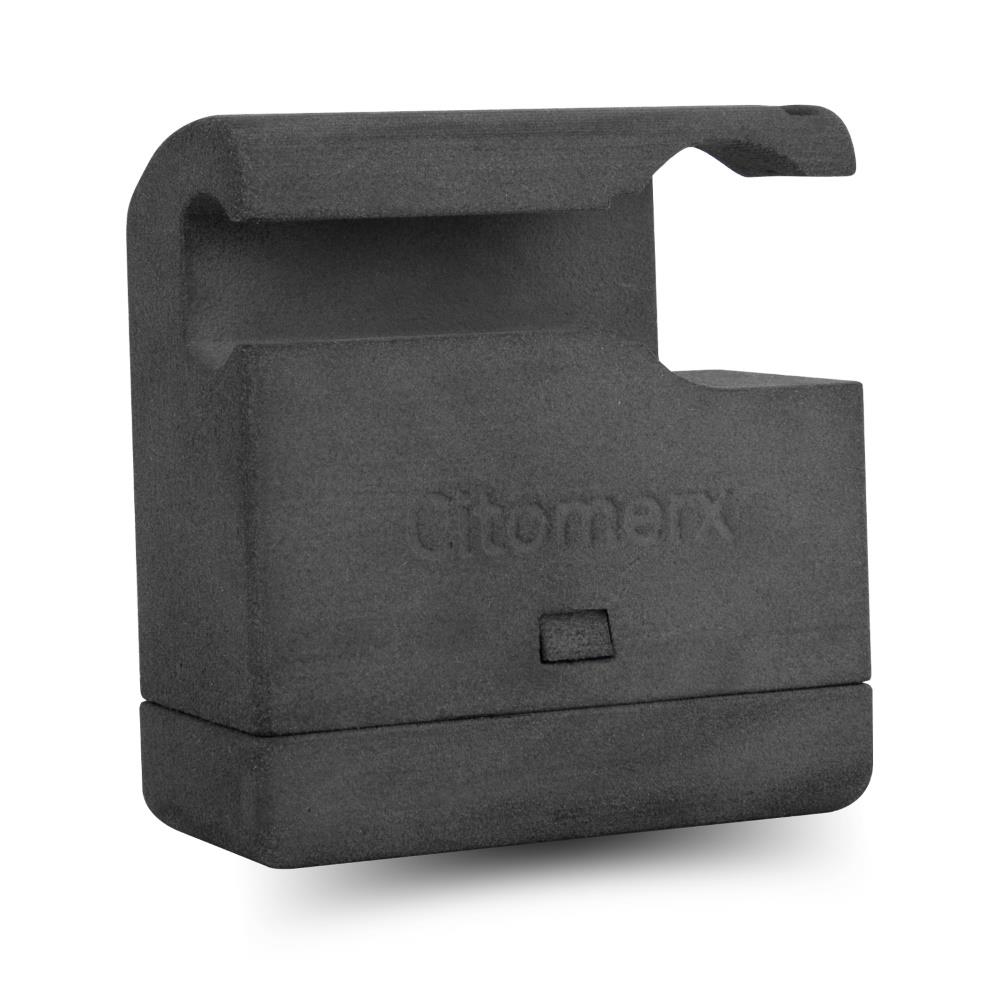

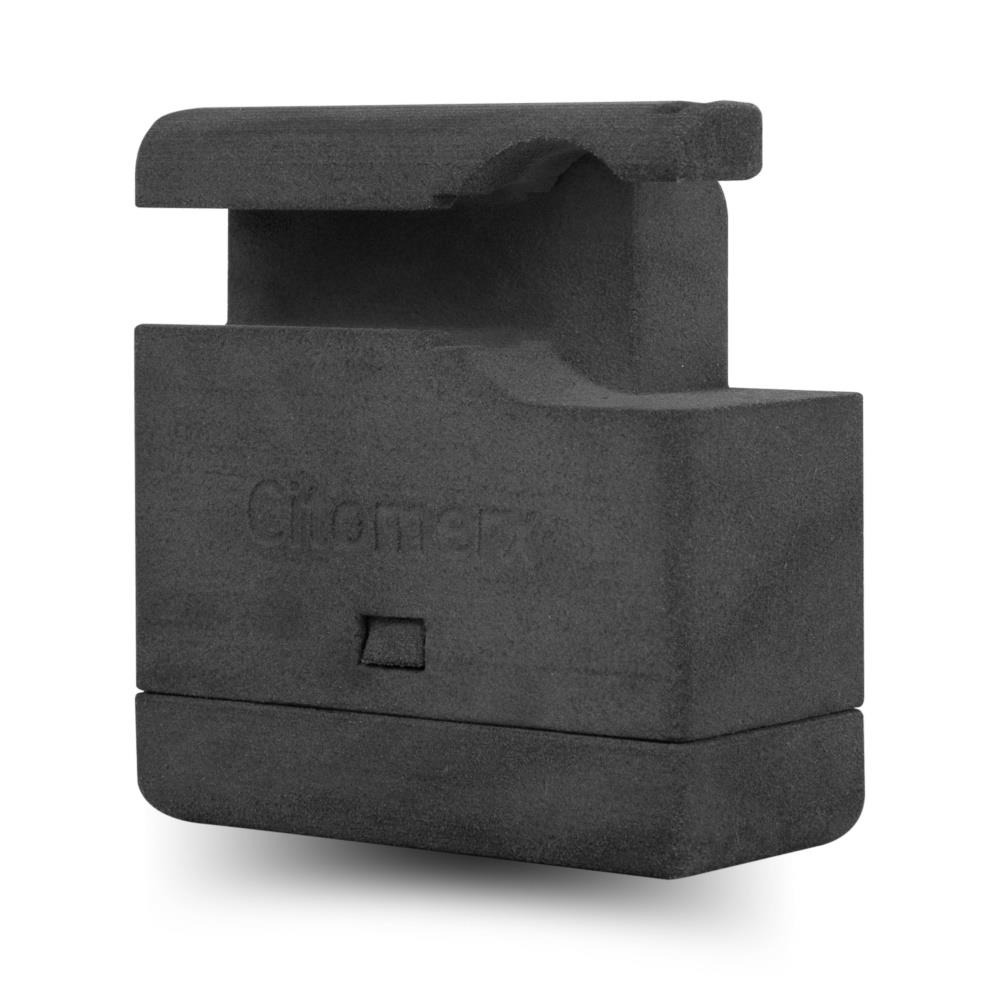

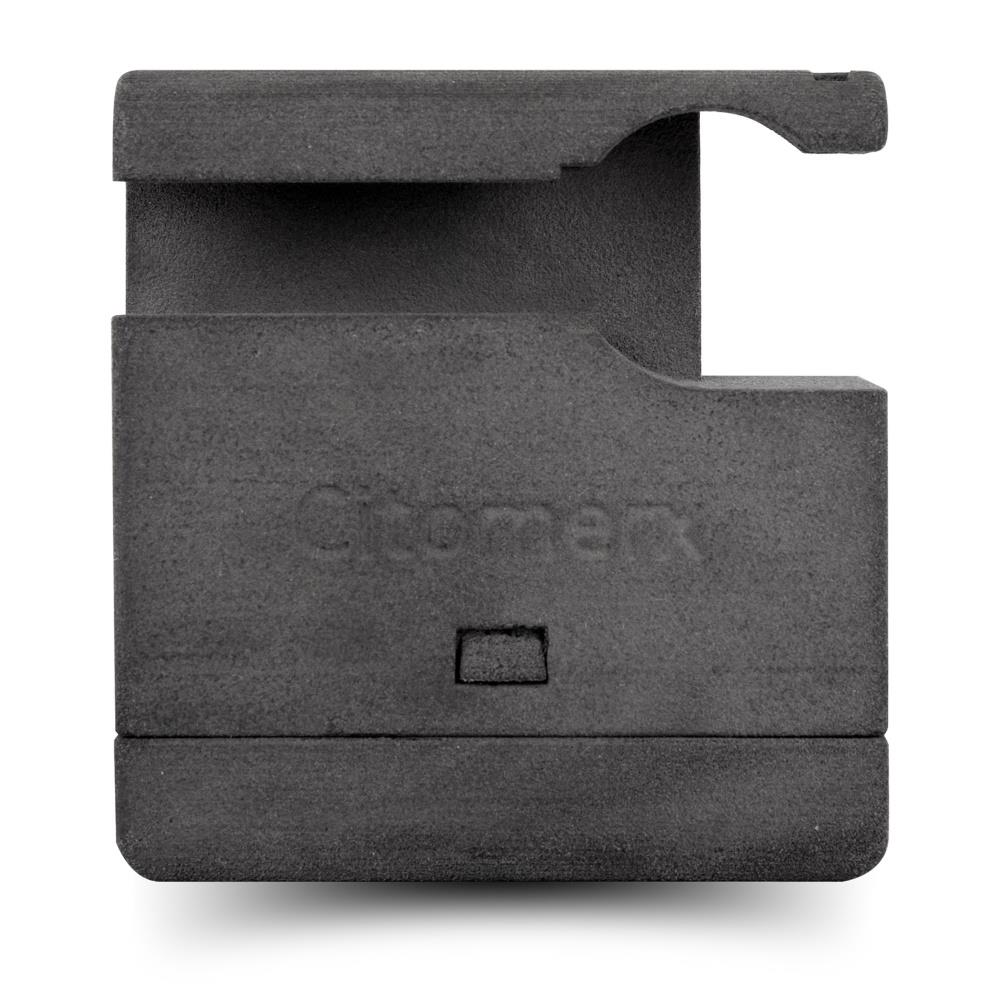

CMX Chiptuning Speedbox Pendix
The next evolutionary step of the CMX Speedbox is a... more
Product information about CMX E-Bike Chiptuning Speedbox Evo2 50km/h for Pendix middle motor pedelec
CMX Chiptuning Speedbox Pendix
The next evolutionary step of the CMX Speedbox is a professional chip tuning module to increase the speed of e-bikes with Pendix mid-engine to about 50 km/h.
DESCRIPTION:
The Speedbox increases the electrical support with E-Bikes to approx. 50 km/h. It is characterised by simple Plug&Play - assembly as well as an intelligent control. For simple start-up the Chiptuning Speedbox is only plugged on the original speed sensor. Thanks to the newly developed mounting bracket, cable ties, O-rings etc. are superfluous. Afterwards the spoke magnet must be moved only a small piece. Depending on the wheel circumference, at approx. 20-23 km/h the integrated control unit starts to halve the signal of the speed sensor, which enables the support up to 50 km/h.
For use in road traffic, the CMX Speedbox is simply removed from the sensor and then the magnet is moved back to its old position. The EBike is now back in its original condition.
TECHNICAL DATA:
- Control unit: Microprocessor
- Battery: Lithium-ion button cell type CR2450
- battery life: 7000-8000
- Weight: approx. 33 g
- Dimensions: 54 x 50 x 14,5 mm
- Housing: laser-sintered special housing, water-protected
- Made in Germany
Matching e-bikes:
The CMX Chiptuning Speedbox is suitable for vehicles with Pendix mid-engine.
FURTHER INFORMATION:
The switching speed of the Tuning Speedbox can be changed on request by the programmable interface through us.
Commissioning and use of the CMX Speedbox is not permitted in the area of operation of the StVO. The use can lead to loss of warranty.
SCOPE OF DELIVERY:
✔ 1xCMX EBike Chiptuning Speedbox including battery CR2450
The next evolutionary step of the CMX Speedbox is a professional chip tuning module to increase the speed of e-bikes with Pendix mid-engine to about 50 km/h.
DESCRIPTION:
The Speedbox increases the electrical support with E-Bikes to approx. 50 km/h. It is characterised by simple Plug&Play - assembly as well as an intelligent control. For simple start-up the Chiptuning Speedbox is only plugged on the original speed sensor. Thanks to the newly developed mounting bracket, cable ties, O-rings etc. are superfluous. Afterwards the spoke magnet must be moved only a small piece. Depending on the wheel circumference, at approx. 20-23 km/h the integrated control unit starts to halve the signal of the speed sensor, which enables the support up to 50 km/h.
For use in road traffic, the CMX Speedbox is simply removed from the sensor and then the magnet is moved back to its old position. The EBike is now back in its original condition.
TECHNICAL DATA:
- Control unit: Microprocessor
- Battery: Lithium-ion button cell type CR2450
- battery life: 7000-8000
- Weight: approx. 33 g
- Dimensions: 54 x 50 x 14,5 mm
- Housing: laser-sintered special housing, water-protected
- Made in Germany
Matching e-bikes:
The CMX Chiptuning Speedbox is suitable for vehicles with Pendix mid-engine.
FURTHER INFORMATION:
The switching speed of the Tuning Speedbox can be changed on request by the programmable interface through us.
Commissioning and use of the CMX Speedbox is not permitted in the area of operation of the StVO. The use can lead to loss of warranty.
SCOPE OF DELIVERY:
✔ 1xCMX EBike Chiptuning Speedbox including battery CR2450
Customers also searched for this product under:
Further links to "CMX E-Bike Chiptuning Speedbox Evo2 50km/h for Pendix middle motor pedelec"
Properties more
| GTIN: | 4251048881410 |
| max. speed: | 50 km/h |
| Color: | Black |
| Scope of delivery: | 1x Speedbox Evo2 CV6B |
| Manufacturer number: | 164196Pendix |
| Country and region of manufacture: | Germany |
| Brand compatibility: | Bosch |
| Position: | Universal |
| Width: | 14.35 mm |
| Height: | 48.1 mm |
| Product type: | E-bike tuning box |
| Model: | CV6B |
| Compatible bicycle type: | Universal |
| Part type: | Control electronics |
| Offer package: | Yes |
| Length: | 50.1 mm |
| Description of the package content: | incl. the required button cell |
| Manufacturer warranty: | 2 years |
| Brand: | Citomerx |
| Weight: | 25 g |
| Material: | Plastic |
